Deity Connect Deluxe Kit

MRP: 75,990.00

Key Features
  • Bag-Ready or Camera-Mount for Interviews
  • DUO-RX True-Diversity 2-Channel Receiver
  • 2 x BP-TRX Transceivers with Timecode
  • 2 x Waterproof Omni Lavalier Microphones
  • Control Transmitters via Receiver
  • 10-Hour Battery Recharges in 1 Hour
  • Encrypted 24-Bit / 48 kHz Transmission
  • OLED Screens, Limiters, RF Adjustment
  • Includes Accessories & Waterproof Case
  • Expands up to 4 Mics at Once/328′ Range
deity-microphones-india-logo

Deity Connect Deluxe Kit



The Deity Microphones Connect Deluxe Kit combines the DUO-RX dual-channel receiver, a pair of BP-TRX transmitter/receivers, and two waterproof lavalier mics to offer a 2.4 GHz digital wireless system ready to deliver broadcast-quality sound for your next two-person interview or narrative shoot. The versatile, professional-level feature set includes recording and timecode capabilities, analog input limiting, and remote transmitter control from the receiver—making the system well suited to a wide variety of users ranging from solo vloggers and YouTubers to small indy film and video crews.

The Connect Deluxe Kit empowers you with the advanced technology, rugged durability, and extensive customization requisite for dependable, high-grade results. To ensure a strong and solid audio link, crucial for reliable results, the Deity Connect Deluxe uses a bidirectional transceiver system with adaptive frequency hopping, “Listen-Before-Talk” stream repair, and encrypted, uncompressed digital signal integrity.

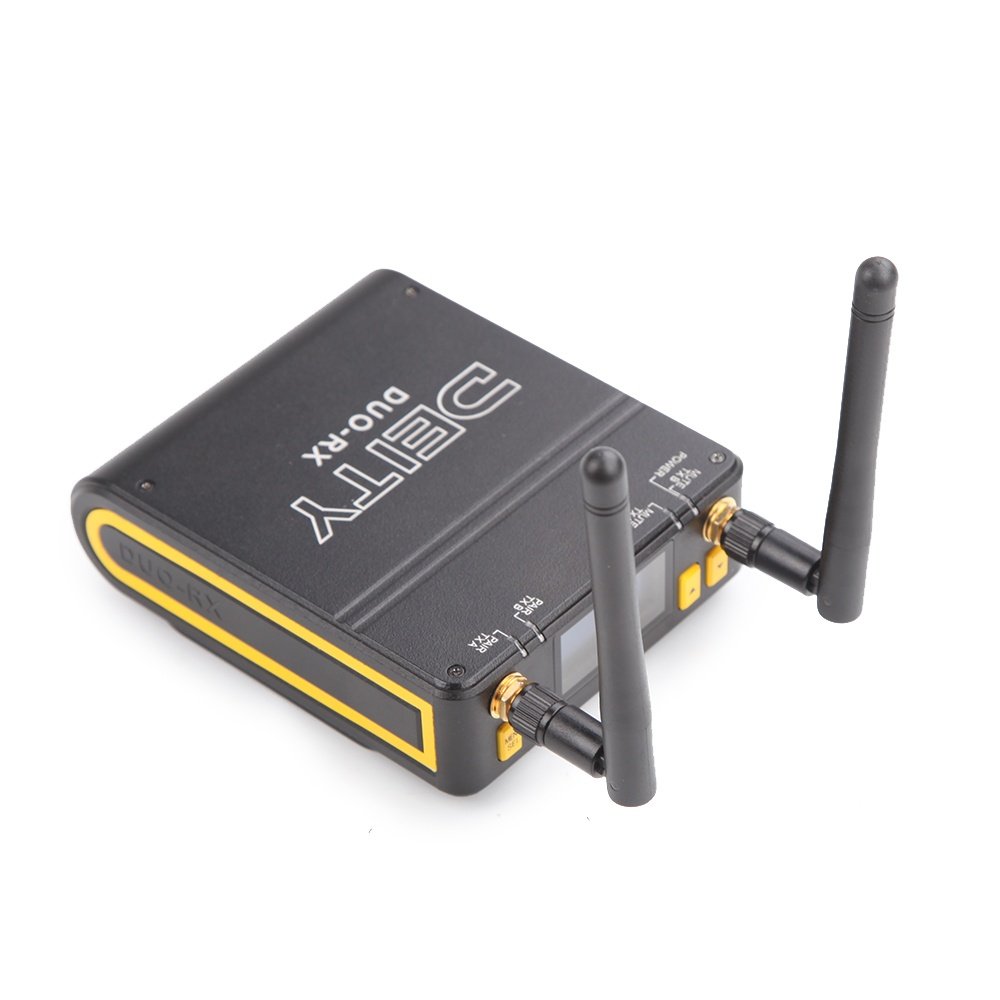

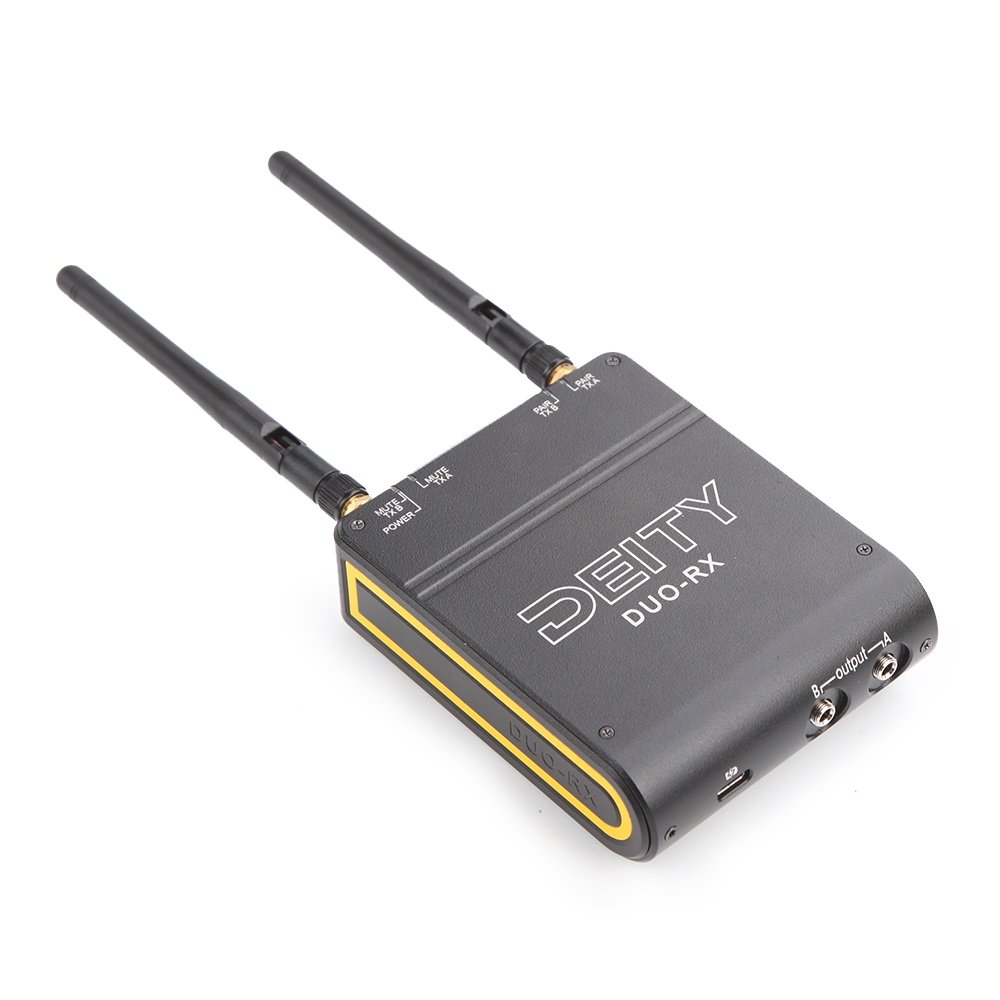

The DUO-RX receiver sports four antennas—two internal dipole horizontal antennas, and two external elbow antennas—to allow versatile positioning and deliver uninterrupted signal reception. Through its OLED screen and straightforward buttons, the receiver provides comprehensive remote control of each transmitter; no more walking over to your subject to adjust transmitter settings. There are two gain-adjustable 3.5mm TRS outputs, which can be utilized in any of the three output modes—XLR mode sends a separate audio channel as a balanced signal to each output jack, DSLR mode mixes both audio channels to one output and turns the other jack into a headphone output, while Stereo mode routes a stereo feed from each transmitter to separate outputs.

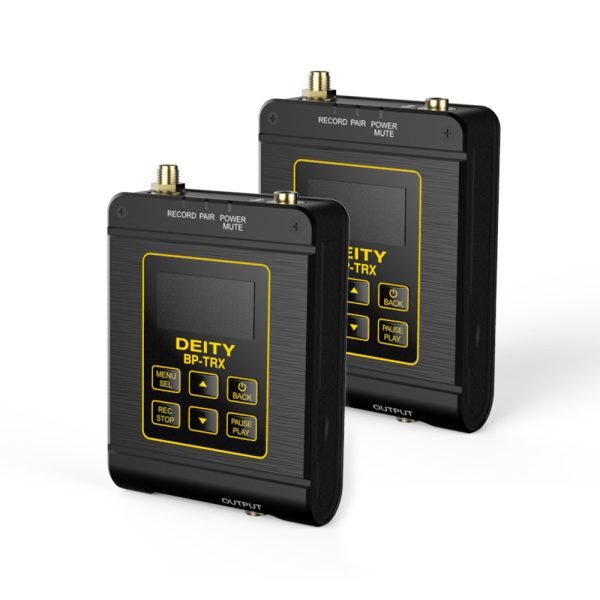

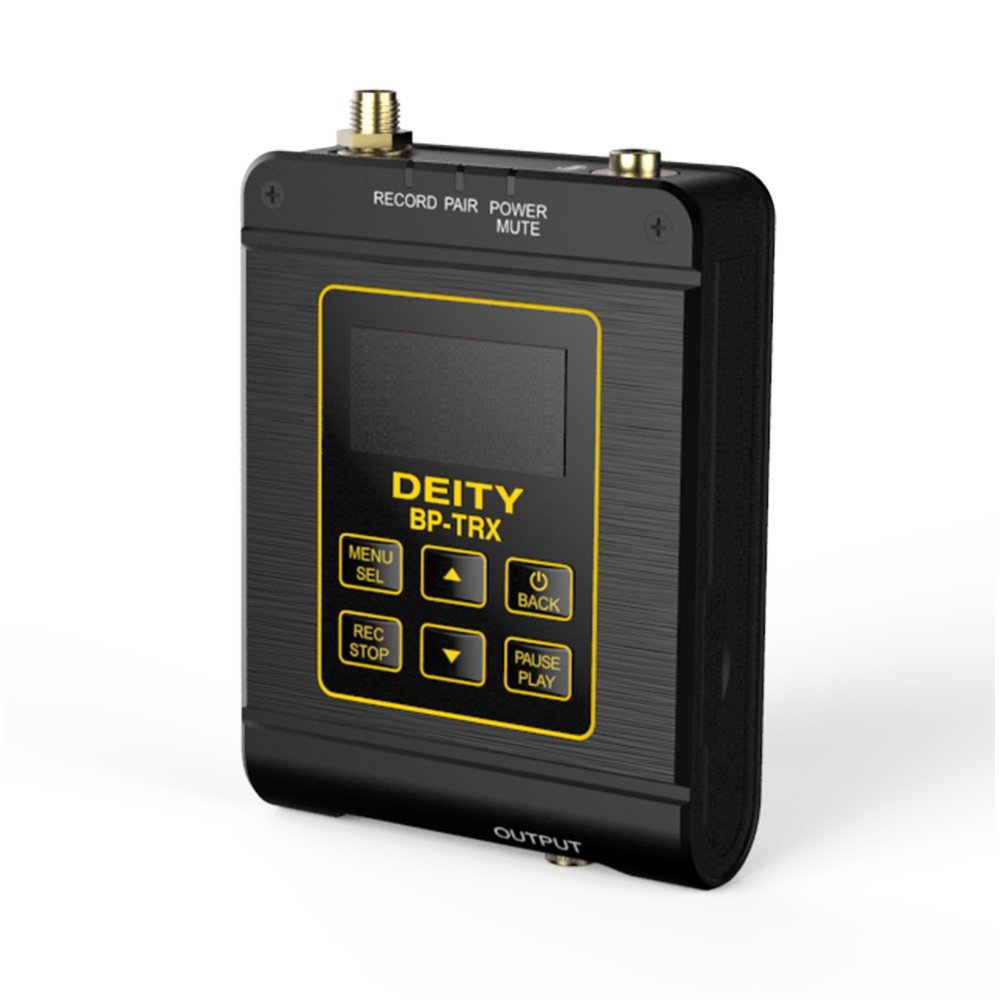

The two versatile BP-TRX units can function as transmitters, receivers, or recorders and offer timecode input and output for audio/video sync. For 2-person shoots, plug the included waterproof lavalier microphones into the locking 3.5mm inputs and pair the units as transmitters with the DUO-RX receiver to record hands-free interviews and presentations to an external device. The DUO-RX is bag suitable or can be camera mounted. A coiled camera connection cable is supplied.

Because the BP-TRX units are two-way transmitter/receivers, you can use the pair (without the DUO-RX) as a compact, camera-mountable wireless system for single-person shoots—with timecode sync via their locking 3.5mm input and output jacks. The input jacks conform to the Sennheiser-standard pin configuration and can be set to accept a mono mic signal or a stereo line-level source for camera hopping. The belt clip can be removed to reveal the 1/4″-20 thread for camera mounting; simply connect the included coiled cable and you’re ready to record. A cable to simultaneously record both audio and timecode to external devices is also included.

In addition to having a similar OLED screen and user-friendly menu navigation as the DUO-RX, the BP-TRX transceivers offer thorough controls to ensure signal quality. Automatic or manual RF power adjustment, switchable analog limiters, and low-cut filters allow you to tame peaks and reduce rumble for enhanced clarity. What’s more, when used as transmitters, settings and parameters on the BP-TRX can be controlled remotely via the DUO-RX or a BP-TRX in receiver mode.

The receiver boasts 10 hours of operating time at 100mW (more time at lower mW settings) via an internal lithium battery, which recharges in about an hour via a USB Type-C connection. The internal batteries on the BP-TRX transmitters will provide power for 12 hours in transmitter/receiver mode, 21 hours in record mode, and 25 hours in timecode mode. A variety of accessories including windscreens and lapel clips for the mic, and a cold shoe for camera mounting, cables, and a waterproof case are included.



DUO-RX Receiver

  • Dual true diversity antenna arrays for a quad-antenna setup
  • Removable SMA elbow antennas allow user upgrades to clover antennas, directional antennas, or antenna splitters
  • Screen, buttons, and antennas face up in a sound bag, while USB Type-C and audio outputs are on the bottom for easy cable management
  • Lightweight at just 8.7 ounces
  • Daylight-bright, high-resolution OLED screen shows real-time VU metering, transmitter battery level, and more on the home screen
  • Convenient remote control of every audio adjustment on each transmitter
  • Powered via internal lithium batteries for up to 10 hours at 100mW RF output power
  • Recharges via USB Type-C connections in about an hour
  • Up to 500 battery cycles
  • Easy firmware updates
  • Two locking 3.5mm outputs with multiple output modes
  • 1/4″-20 and 3/8″ mounting points

Two BP-TRX Transmitters with Waterproof Lavalier Microphones

  • Two omnidirectional waterproof lavalier microphones included with foam windscreens and lapel clips
  • Each BP-TRX will pair with up to four BP-TRX units as receivers or the DUO-RX dual-channel receiver to create a wireless audio system with a maximum range of 328′
  • Record function available when wireless operation is impractical
  • Records 24-bit / 48 kHz audio to a microSD with a capacity up to 128GB (available separately)
  • Sennheiser-standard locking 3.5mm TRS input for compatibility with popular lavalier microphones such as the Sanken COS-11D, DPA CORE Series, Sennheiser ME 2-II, Deity W.Lav Pro, and others
  • Accepts mic- or line-level signals
  • Guard Rail analog limiter reduces clipping and overloads at the input stage
  • Selectable stereo line-level input mode
  • -12 to +36 dB input adjustment
  • Compact size with durable brushed-aluminum housing for durability
  • Removeable belt clip with 1/4″-20 thread underneath for camera mounting when used as receiver

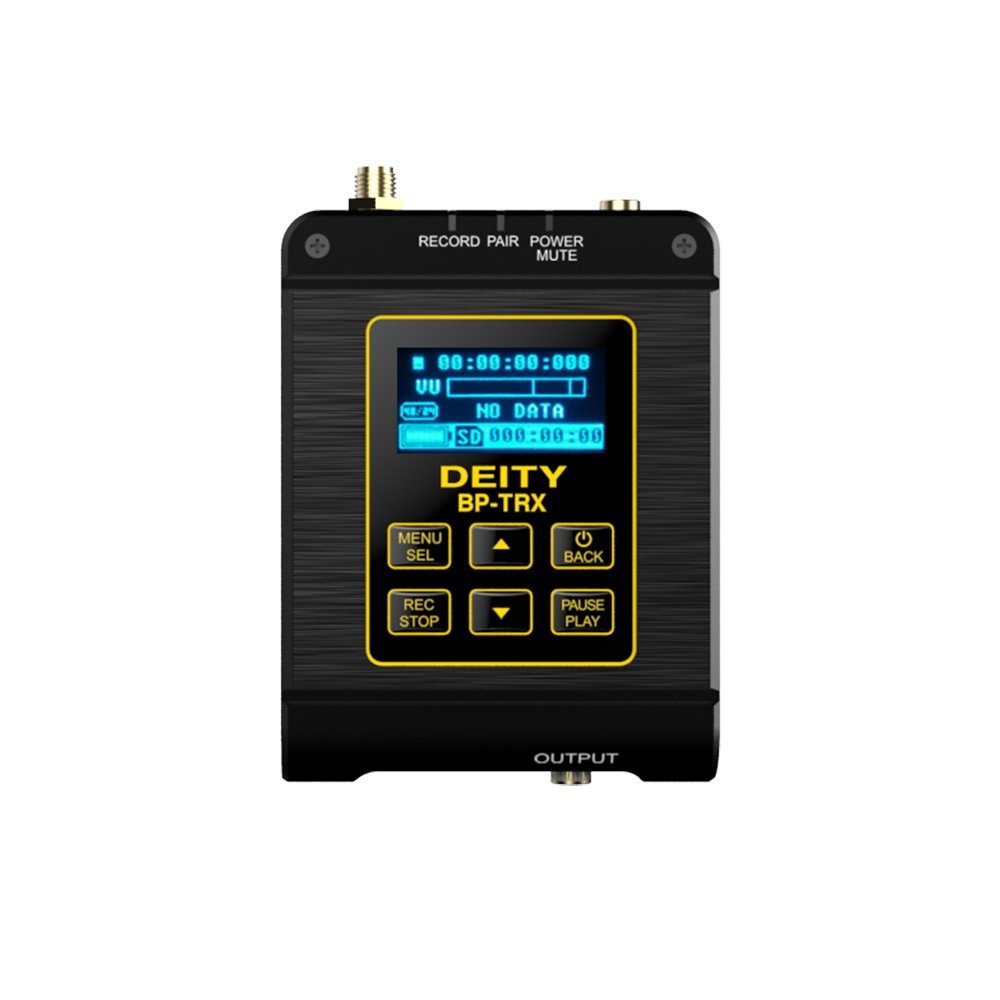

  • Daylight-bright, high-resolution OLED screen shows statuses of all major features and real-time VU metering on the home screen
  • Off / 20 / 200 Hz low-cut filter settings
  • Screen and button lock to avoid accidents
  • Remote control of many transmitter functions from BP-TRX or DUO-RX receiver
  • Use for camera-hop or IEM applications
  • Removeable antenna
  • Auto/manual RF power output adjustment from 10 to 100mW
  • Automatic RF power mode increases battery life by never using more power than the system needs
  • Assignable unique user ID

In the Box

  • Deity Microphones Connect Deluxe Kit 2-Person Wireless Lavalier Microphone System (2.4 GHz)
  • DUO-RX Dual-Channel Receiver
  • Hook and Loop Strap
  • 2 x W.Lav Pro TRS Lavalier Microphones
  • 2 x Cable Ties
  • 2 x Lapel Clips
  • 2 x Foam Windscreens
  • 2 x USB Type-C Data/Charging Cables
  • Timecode Sync and Audio Cable
  • 3.5mm TRS to XLR Cable
  • 2 x External Antennas for BP-TRX
  • 2 x External Antennas for DUO-RX
  • USB Type-C to USB Type-A Firmware Update Adapter
  • Cold Shoe
  • Locking 3.5mm to 3.5mm Coiled Cable
  • Sync Cable

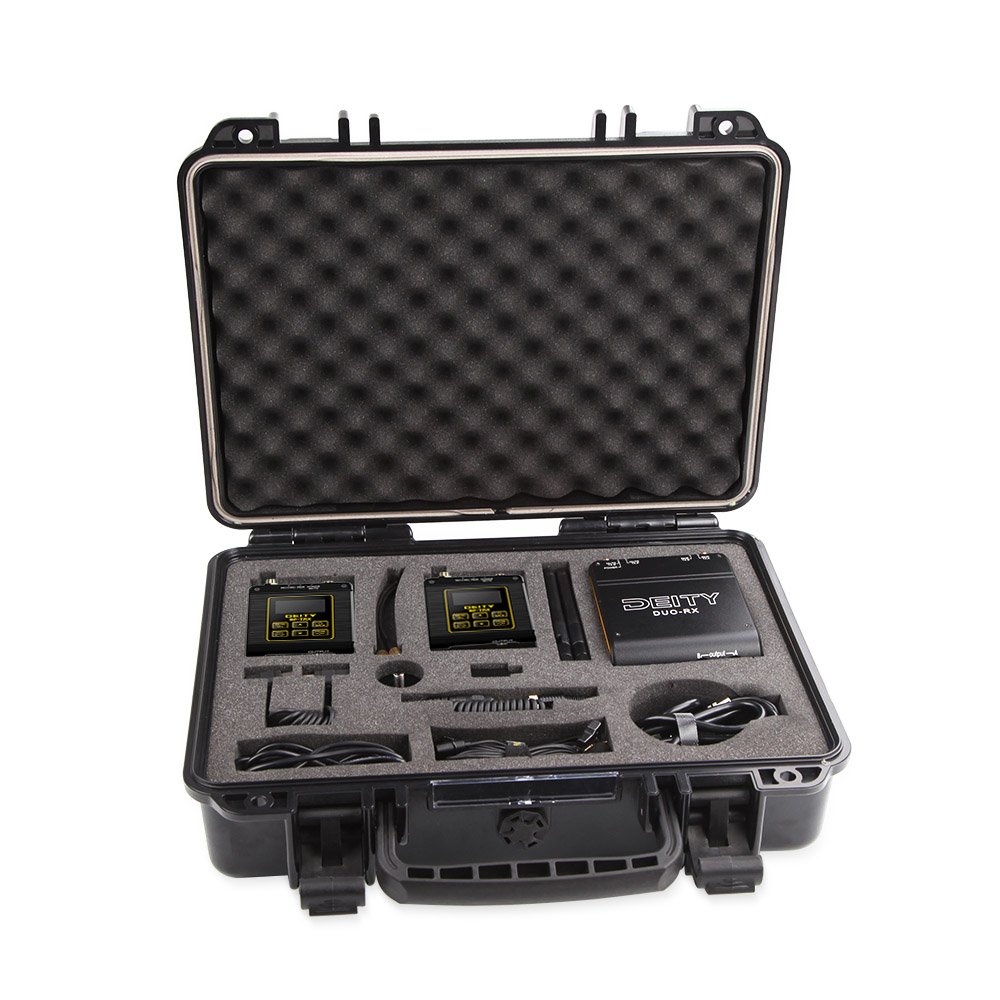

  • Waterproof Hardshell Case

Deity Microphones Connect Deluxe Kit india tiyana 1Deity Microphones Connect Deluxe Kit india tiyana 2



Brand

Deity
