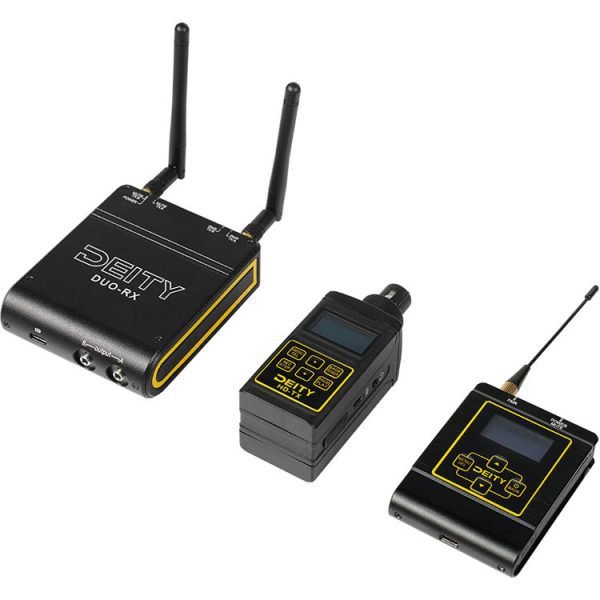

Deity Microphones HD-TX Plug-On Transmitter with Built-In Recorder (2.4 GHz)
Do More. Carry Less.
We wanted to create a transmitter that would combine several critical tools that we all carry in our sound kits into the ultimate multi-tool. There have been transmitters with recorders built-in, but none have ever allowed you to monitor the recording and files using headphones plugged into the device.
You wouldn’t use a camera without a monitor, why would you record audio if you can’t hear it?
- Transmit and record simultaneously*
- Multiple RF Outputs (10mW, 25mW, 50mW, 100mW, AUTO)
- Guard Rail Analog Limiter
- 75Hz and 150Hz Low Cut Filters
- Boost Audio Frequencies 7KHz – 20Khz
- Assign User ID’s to each transmitter
- 1.3″ OLED display
- Screen and button lock
- Record 24bit/48kHz WAV files to MicroSD card
- Both a XLR input and 3.5mm Mic/Line input
- +48V Phantom Power
- ~10hrs of battery life at 100mW**
- 8hrs record time on a 8Gb MicroSD card
- Headphone jack for live monitoring and listening to playback
- Screen and button auto-lock
- Firmware updatable
*Deity HD-TX units sold inside the USA will disable audio transmission when you hit record. Only internationally sold units will feature the ability to transmit and record simultaneously.
**Run times vary based on RF Output, if Phantom Power is turned on, and/or if the unit is recording to the micro SD card. Your battery life may vary. Reducing the RF Output will increase the battery life.
We know data loss is a huge deal. That is why we added three safeguards to help prevent you from losing your valuable recorded audio files. The first safeguard we built into the HD-TX is a built in battery. This eliminates the fear of sudden power failure from a battery door being opened or the use of mislabeled batteries. Secondly the HD-TX can predict the internal lithium battery’s power depletion curve so it knows when the battery is about to die, automatically saving the current recording before powering down the unit. Lastly we made it so that even if the power button is pressed in the middle of a recording the unit will stop the recording, save the file to the micro SD card, and then power down. Using the HD-TX screen and button lock can prevent even this last type of user error.
Internal testing gave us +10Hrs of run time when transmitting at 50mW, recording, and having phantom power enabled to power a Deity S-Mic 2S.
On-Board File Management
The HD-TX allows you to playback files, rename them, and delete takes.
File names are determined by the USER ID assigned to the HD-TX so if multiple units are being used file management in post production will be easier to keep organized.
|Audio Input Connectors||XLR, Locking 3.5mm TRS|
|Input Gain Range:||-12dB~+36dB|
|Input Frequency Response||20Hz~20KHz|
|A/D Converter Dynamic Range||92dB|
|Audio Output Connectors||Stereo TRS|
|Phantom Power||48V via XLR, +3V Plugin Power via TRS|
|Low Cut||75Hz / 150Hz|
|High Frequency Boost||7kHz-20kHz Boost @ +1dB steps|
|Audio Retransmission Modes||Low 19ms/ Medium 30ms/ High 40ms|
|Range||Up to 100m / +300ft|
|File Sizes||1Hr = ~1Gb|
|Battery Type||Lithium-Ion Rechargeable Battery|
|Battery Life||10hrs @ 100mW RF Output”}”>>10hrs @ 100mW RF Output|
|Battery Recharge Time||<90 minutes via USB QuickCharge 2.0/3.0|
USB-C (Supports QC 2.0/3.0 and MTK PE quick charge)
|Display Type||1.3″ OLED Display|
|Operational Temp||-10C to +45C|
Whats in Box:
- Deity HD-TX Transmitter/Recorder
- USB-C to USB-A cable for charging
- HD-TX Holster with Belt Clip
- Warranty Paperwork
