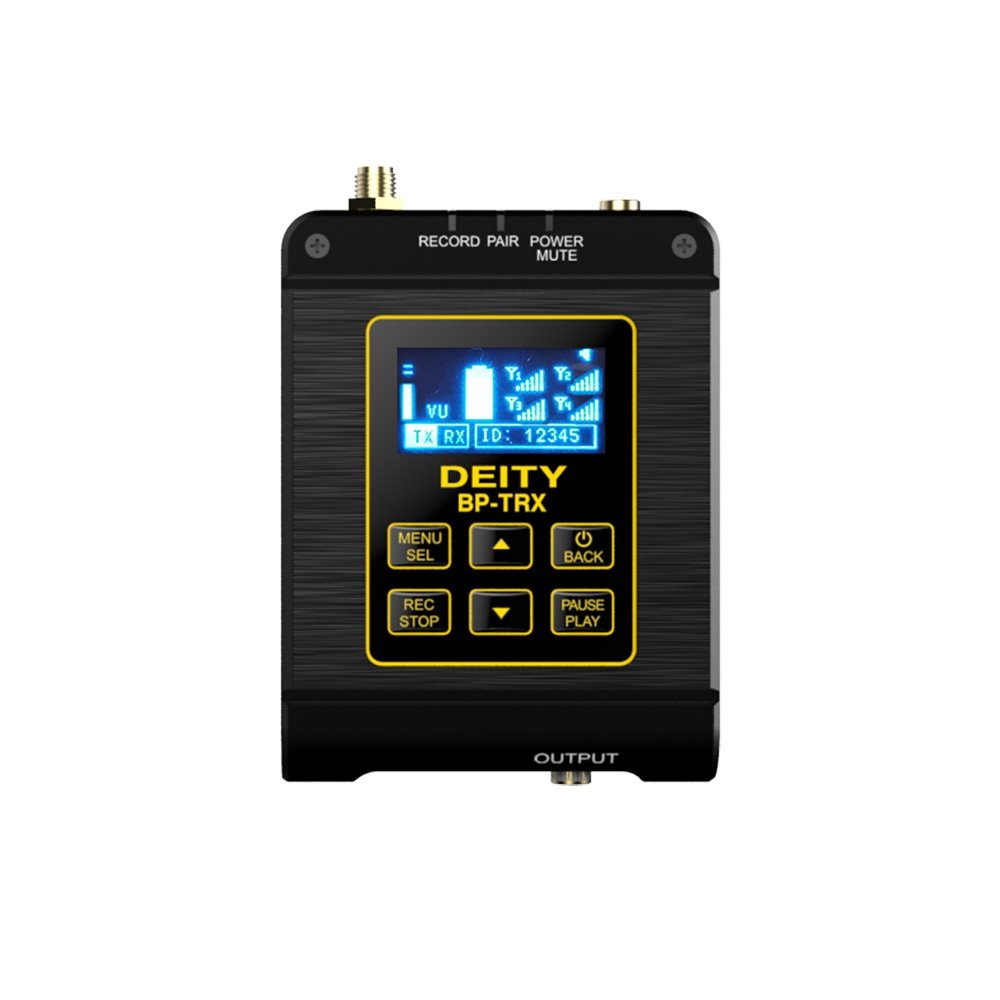

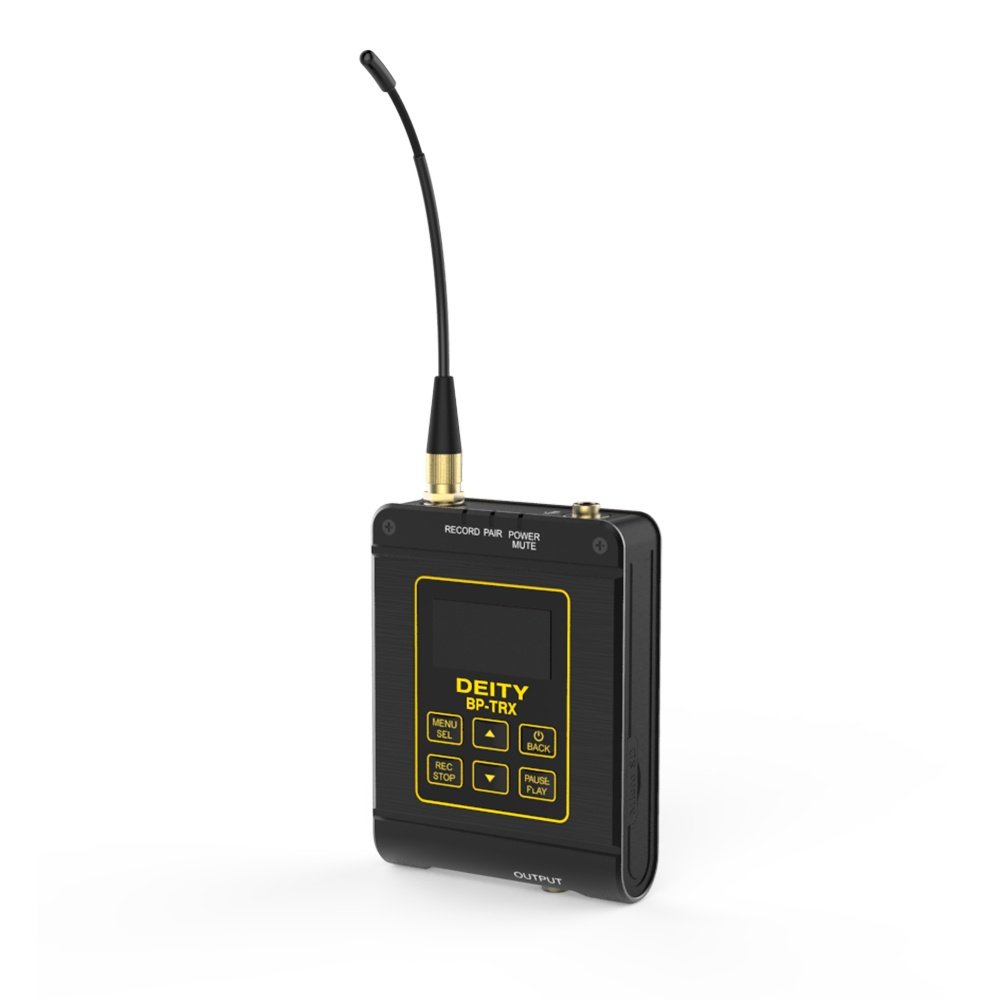

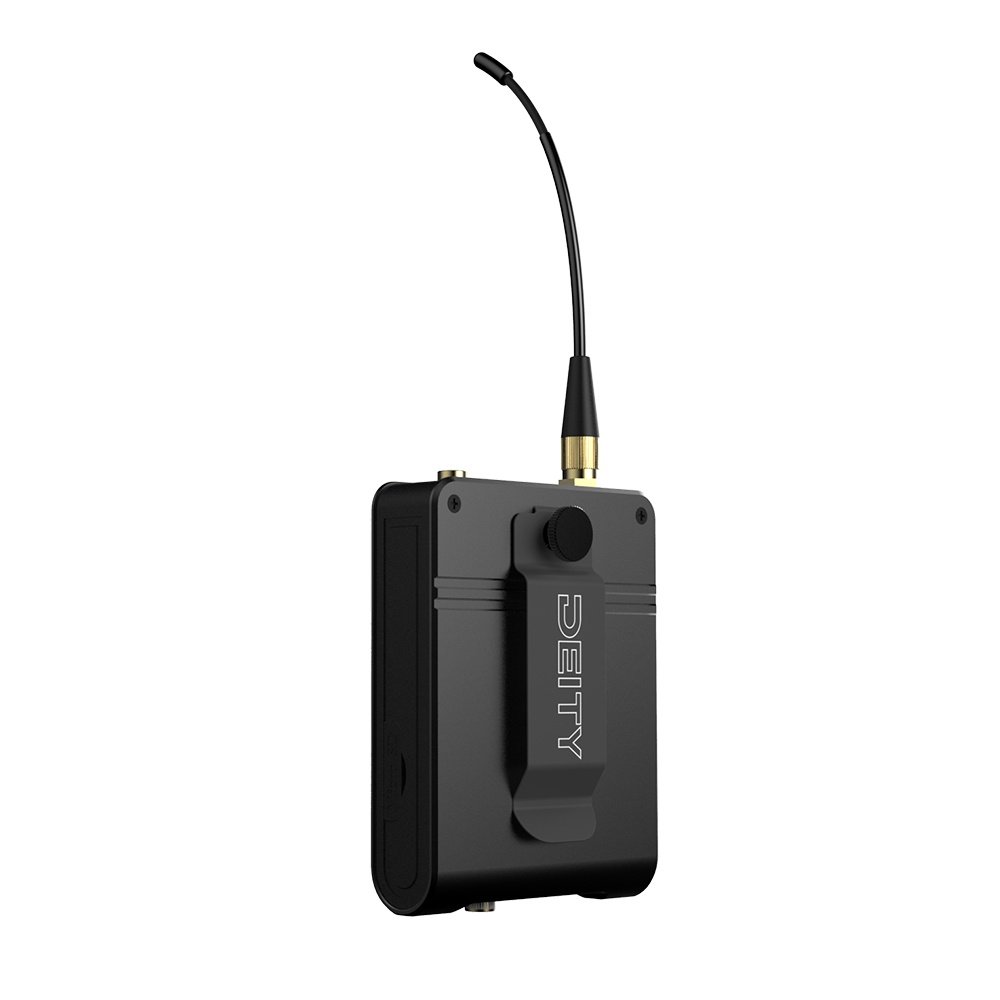

Deity Connect BP TRX Transmitter & Receiver
The Ultimate Audio Multi-Tool
The BP-TRX is the next evolution in 2.4GHz digital wireless microphones systems. Using its bi-directional transceiver radio, the BP-TRX can be used as body pack transmitter or as a single channel wireless receiver with special receiver modes to act as a wireless IEM system for directors and producers or as a camera hop.
The BP-TRX features an on-board timecode audio recorder. It can jam to external timecode or generate and output its own. With its ability to transmit and record at the same time, you will never have to worry about missing audio due to wireless interference ever again. The on-board analog limiter also prevents audio from clipping.
A Tool For Everything
The BP-TRX is unique in that it can become a transmitter, a receiver, a timecode-enabled audio recorder, or just a standalone timecode box. The BP-TRX adapts to fill whatever roles you need filled on your film set.

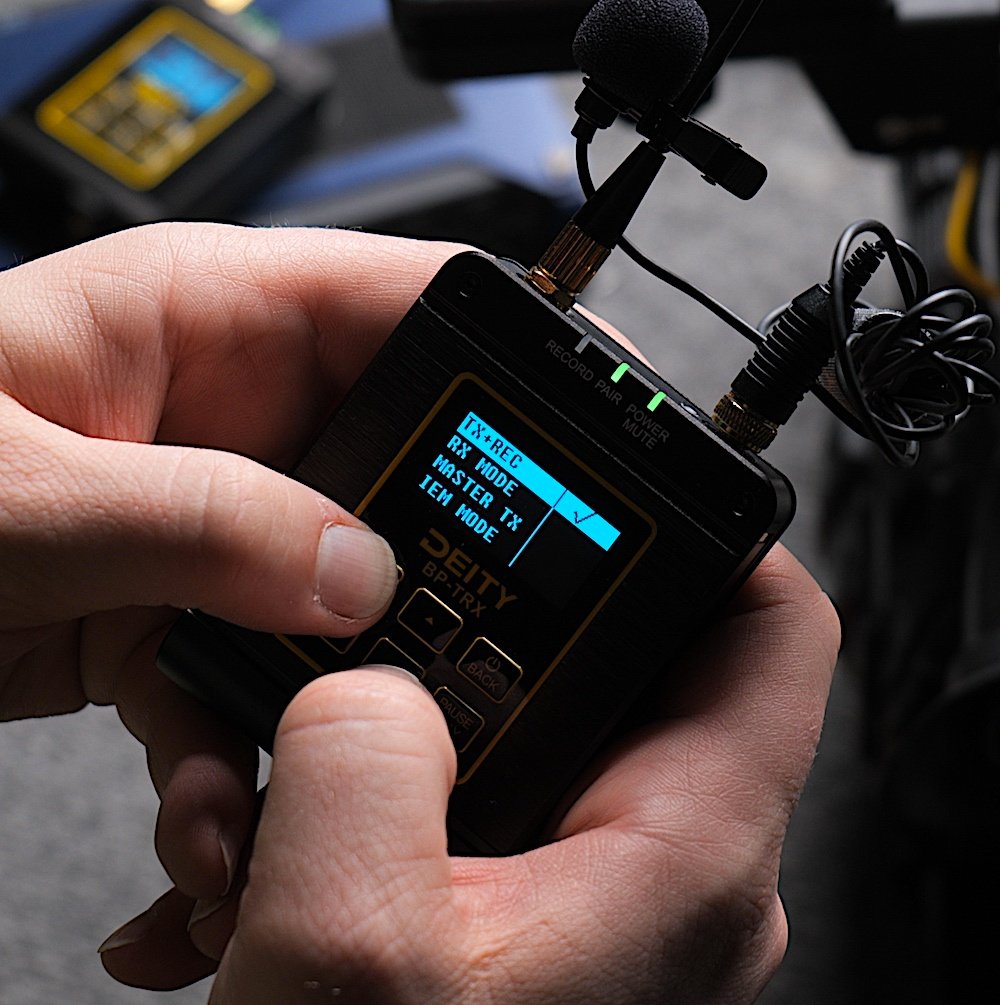

The BP-TRX is akin to a small pocket computer with analog audio I/O, digital I/O, wireless transmission I/O, and timecode I/O. In the TRX Mode menu, you are able to select one of seven different modes that connect these different I/O ports and turn it into the exact tool you need in the moment.
Record +120 Hrs Of Audio
You can record entire days of audio before you have to swap microSD cards.

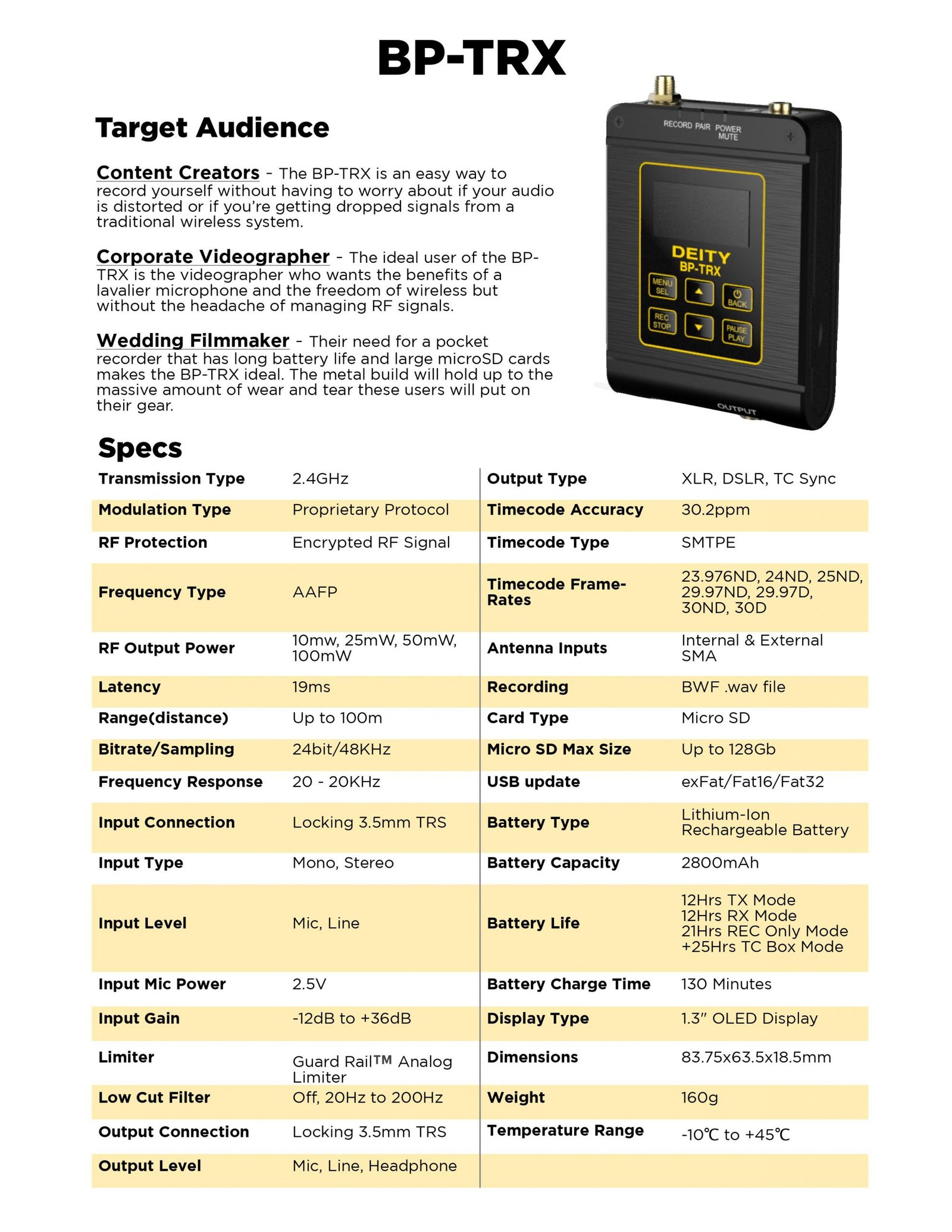

- Max Card Size – 128GB
- Card Type – microSD
- Card Format – FAT32, exFAT
- Max File Size – 2GB; automatically keeps recording and creates a new file
- File Type – 24bit/48KHz Uncompressed PCM WAV File
Guard Rail™️ Analog Limiter
The BP-TRX features an analog limiter to help prevent clipping and distortion. Record clean audio worry-free.
Compact Size

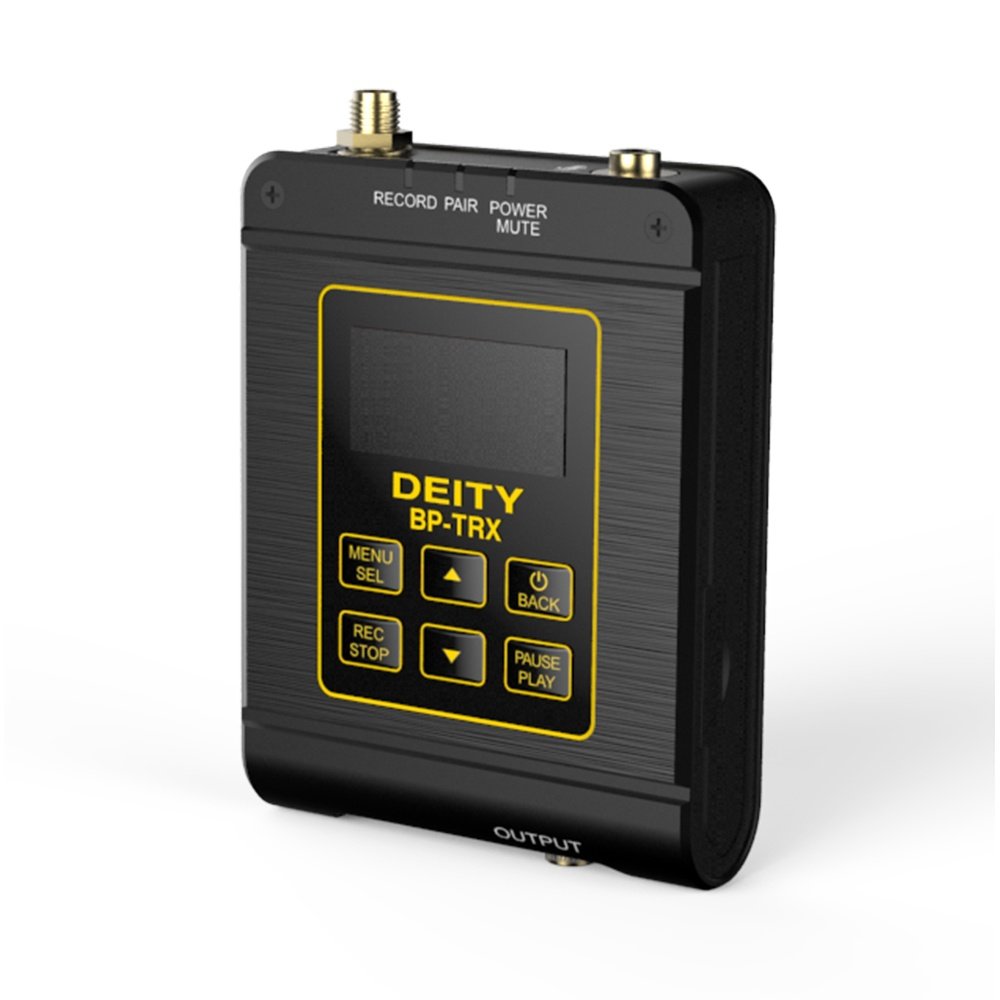

The BP-TRX is about the same size as a deck of cards.
Stay In Sync
When used as a standalone TC box, the BP-TRX will run for over 25 hours. And with its 0.2ppm accuracy, the BP-TRX will only drift 1 frame every 24 hours.
More Versatile Together

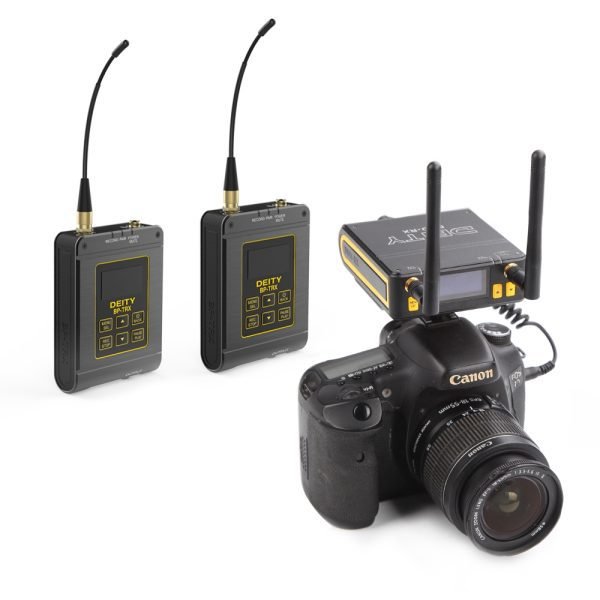

Users can pair two BP-TRX units together to create a single-channel wireless microphone system. Remotely control your transmitter’s settings from the connected receiver. Using the record button on the BP-TRX in RX Mode will trigger the internal audio recorder on your actor’s bodypack transmitter.
Multicast Like A Pro

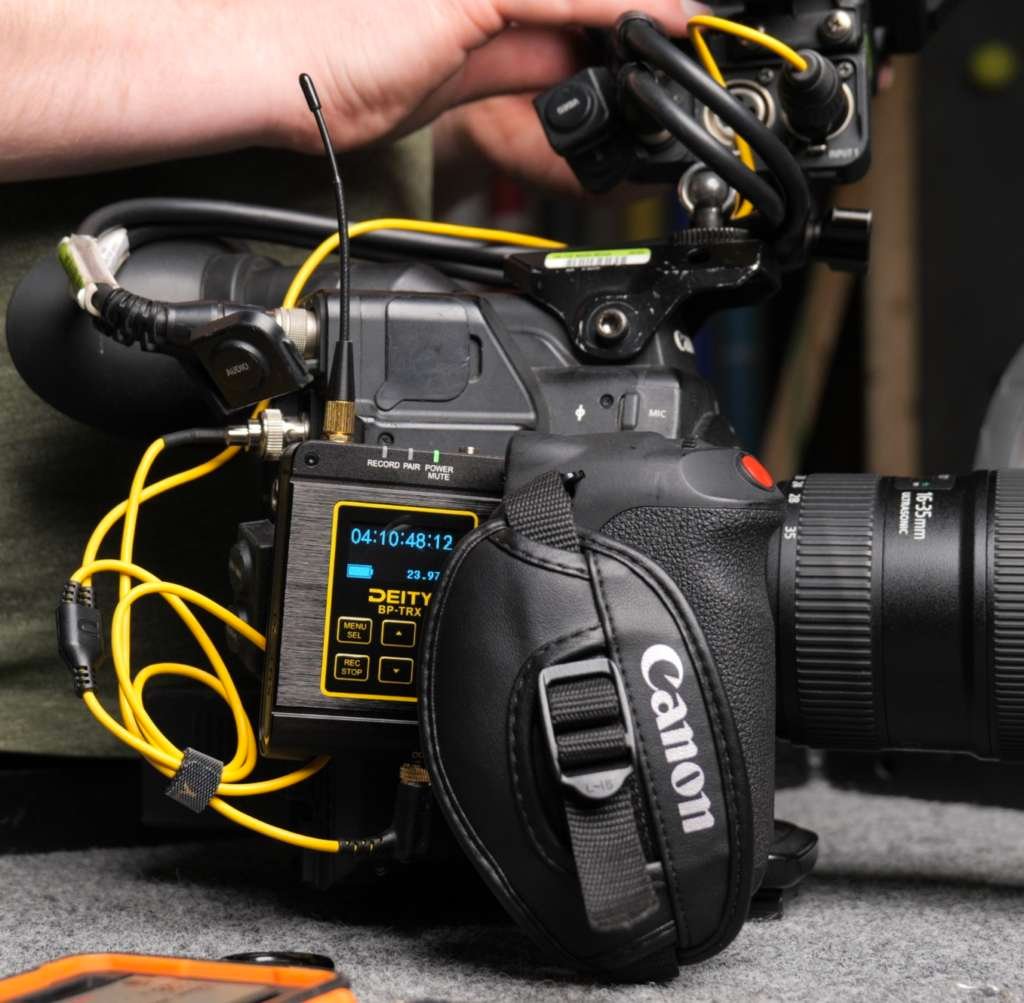

You can pair up to 4 BP-TRX units to a single master BP-TRX. This allows users to turn up to 4 BP-TRXs into Camera Hops, outputting both audio and timecode to a camera. Or users can select IEM Mode, allowing others on set to wirelessly monitor audio. Users can even mix BP-TRX units running IEM or Camera Hop mode.
