Deity SF1 Directional Shark Fin RF Antenna Kit

Overview

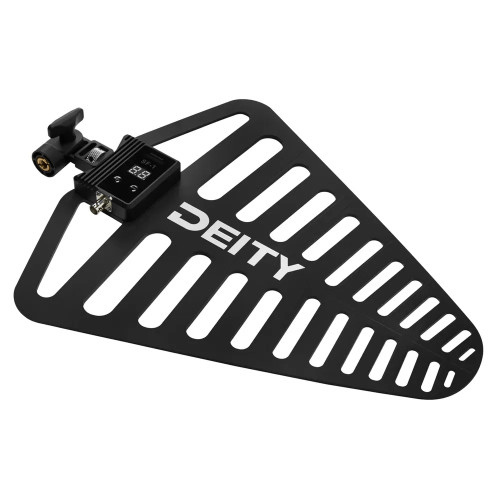

The Deity SF1 Directional Shark Fin Antenna is a wideband active RF antenna designed for reliable wireless performance in tough spectrum. Covering 470–960 MHz with a directional panel and ~60° optimal pickup angle, it delivers clean, focused reception for theatre, houses of worship, TV sets, festivals, and corporate events. Its IP54 weather-sealed, vented metal housing and pro 50 Ω BNC connectivity make it a robust choice for carts, distros, and low-loss coax runs.

Core Features

• Ultra-wide spectrum coverage: 470–960 MHz
• Active RF gain: −9 dB to +21 dB (1 dB steps)
• Passive antenna gain: 6 dBi
• Directional pickup with ~60° optimal angle
• OIP3 39 dBm for strong dynamic range
• 50 Ω BNC connector; standard pro integration
• IP54 weather-sealed, vented, metal housing
• Female ARRI 3/8-16 accessory mount; anti-rotation
• Mount threads: 3/8″ (~9.5 mm) and 5/8″ (~15.9 mm)
• Power: DC 12–16.8 V; 12 V/90 mA (max)

RF Capabilities

Ultra-Wide Spectrum Coverage

Operates across 470–960 MHz, making it compatible with Deity’s THEOS ecosystem and many other wireless systems without reconfiguring your kit when venues change.

Directional Pickup

The directional panel focuses reception where you point it and reduces off-axis noise. Keep line-of-sight, mount high, and space diversity antennas at least a wavelength; a quick walk-around helps map your reliable pickup zones before the show.

Dynamic Range

An OIP3 of 39 dBm helps preserve headroom and fidelity in crowded RF environments.

Gain & Power Control

Active RF Gain Circuitry

Dial in −9 dB to +21 dB in 1 dB steps to match measured cable loss instead of guessing. A red overload indicator warns of front-end saturation—back the gain down to maintain headroom.

Passive Operation

No DC bias available? The SF1 still performs as a passive panel with 6 dBi of gain.

Power Requirements

Accepts DC 12–16.8 V via bias from a receiver or RF distro; maximum draw 90 mA at 12 V.

Build, Mounting & Connectivity

Rugged, Weather-Sealed Design

IP54 rating with a vented, slotted panel lets wind pass through on exposed shoots, while the metal housing protects the electronics from the elements.

Mounting Options

Features a female ARRI 3/8-16 accessory mount with an anti-rotation solution, plus 3/8″ (~9.5 mm) and 5/8″ (~15.9 mm) thread options for common stands and hardware.

Connectivity

Standard 50 Ω BNC connector integrates cleanly with professional RF distribution and low-loss coax. A 5 m BNC-to-BNC cable is included.

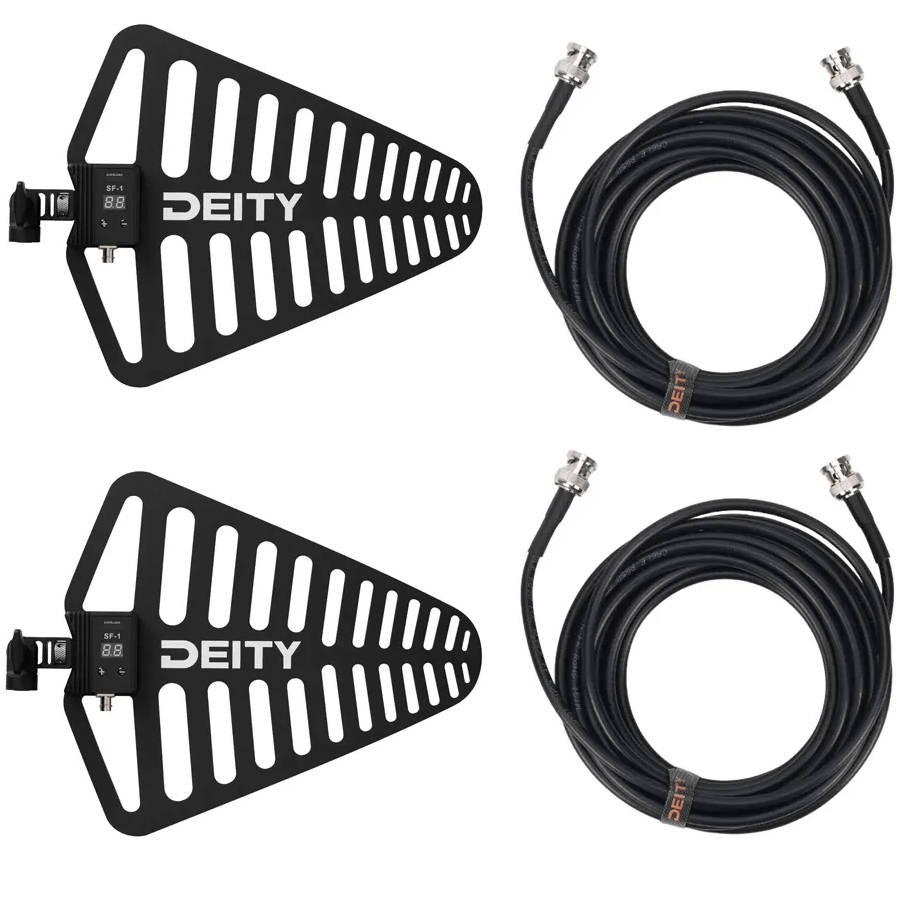

What’s Included

• 2 x Deity SF1 Directional Shark Fin Antenna
• 2 x Metal Hinged Stand Mount

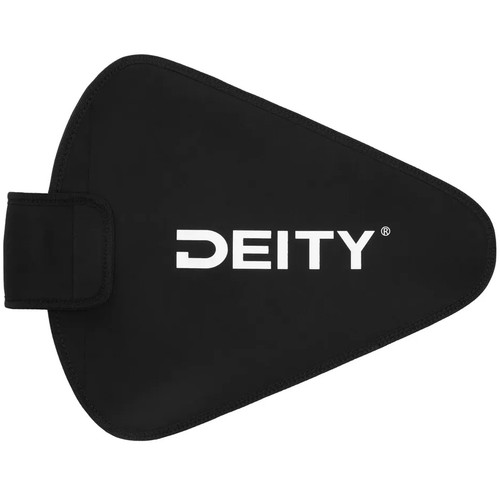

• 2 x Neoprene Padded Protective Cover
• Stickers
